Description

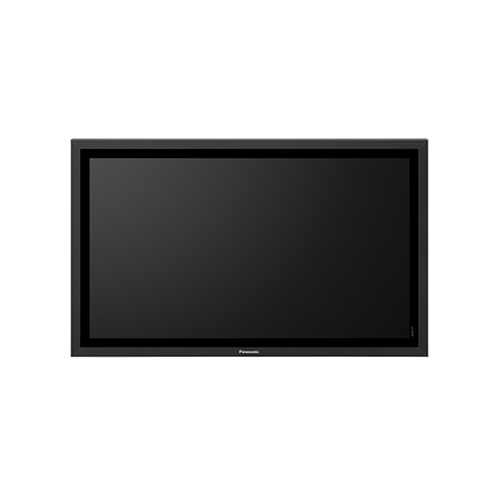

TH-47LFX6N



High-Brightness 1,200-cd/m2 Model with Wide-Viewing-Angle IPS Panel and LED Backlight



The use of a bright LED backlight achieves a brightness of 1,200 cd/m2 for the LFX6N. This provides a sharp image display even in brightly lit places, for excellent visibility capable of accurately relaying information. Choose the model that matches your usage environment.



The IPS panel makes it easy to read from any positions.



The IPS panel displays clear images, and colours appear unchanged even when the image is viewed from an angle top or bottom, right or left. It provides accurate information to many people in a large place such as a public facility.



 Forced Air-Cooling System Helps to Prevent Blackouts and Dew Condensation



Outside air is brought into the cabinet to produce airflow between the front glass and the LCD panel. This suppresses internal temperature rises and prevents blackouts when the display is installed outdoors. It also serves as a countermeasure against condensation.



Blackouts Occur



When direct sunlight continuously hits the screen and the temperature of the LCD panel rises, the liquid crystal molecules stop operating normally and a blackout condition occurs that leaves the screen totally dark.



No Change



The forced air cooling system suppresses internal temperature rises to prevent blackouts.



•Operates under an ambient temperature of -20°C*1 to 50°C (-4 °F*1 to 122 °F).



High Reliability Enables Continuous 24-Hour Operation



The use of a highly durable panel and electronic components allows continuous 24-hour operation, ideal for installation in 24/7 stores, drive-thru, public places, etc. A built-in cooling fan automatically operates (when set to Auto) depending on the temperature.



* In case of long time, the moving image is recommended to be displayed. If you display a still picture for an extended period, the image retention might remain on the screen. However, image retention can gradually disappear by displaying moving images.



Highly Durable Display Resists Temperature Changes



Featuring an operating temperature range of -20°C*1 to 50°C (-4 °F*1 to 122 °F), performance remains unchanged even in cold and hot climates.



Aluminium Cabinet and Tempered Glass



The aluminium cabinet strongly resists corrosion. In addition, tempered glass ensures rugged strength against impacts.



The Dust and Water Resistant Equivalent to IP55



IP level dust and water resistant performance provides tough durability in harsh conditions.



What is IP: This denotes the degree of dust and water resistance. IP is an abbreviation of the international standard Ingress Protection.



DIGITAL LINKDIGITAL LINK



Transmission of Video, Audio and Control Signals for up to 100 m [328.1 ft] with a Single LAN Cable*1.



Only a single LAN cable is required to transmit uncompressed HD video, audio and control signals for a distance of up to 100 m [328.1 ft]. This enables indoor installation of the PC and other devices connected to the display at an outdoor location in order to protect the PC and devices from rain and dust. Since only one cable needs to be connected between the PC and panel, cable routing work is quick and easy.



Because a control signal can also be sent simultaneously, it is easy to upgrade the system by combining it with the optional ET-YFB100G Digital Interface Box.



*1: Use an STP cable of CAT5e or higher.



*2: WUXGA (1,920 x 1,200 pixel) compatible.



Remote Display Monitoring



The display can be monitored over a network for temperature, filter clogging, etc. This enables prompt response should an equipment malfunction occur.
