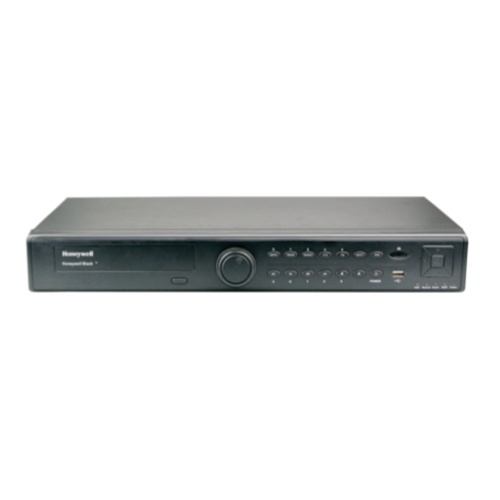

Honeywell CADVR-4008FD / -16FD / -08FD-H Digital Video Recorder

QUICK OVERVIEW

The Honeywell Black™ CADVR-2004/08/16HD is 720P 1U DVR for small-tomedium scale applications to deliver high resolution recording images. With outstanding 720P resolution, compatibility with AHD analog cameras, 750TVL (or less than 750TVL resolution) analog cameras and Honeywell Black™ CALIP series IP cameras, this DVR optimizes recording quality to provide outstanding video performance for hybrid application of anThe Honeywell Black™ CADVR-4008FD/16FD/08FD-H is an easy-to-use 1080P 1.5U digital video recorder series available in 8 and 16 channels. By deploying H.264 video compression, compatibility with AHD analog cameras, 750TVL (or less than 750TVL resolution), and Honeywell Black™ CALIP series IP cameras, this DVR delivers outstanding video performance for hybrid application of analog and network surveillance. alog and network surveillance.

Compare

Description

4 SATA 8-/16- Channel 1080P AHD Digital Video Recorder

The Honeywell Black™ CADVR-4008FD/16FD/08FD-H is an easy-to-use 1080P 1.5U digital video recorder series available in 8 and 16 channels. By deploying H.264 video compression, compatibility with AHD analog cameras, 750TVL (or less than 750TVL resolution), and Honeywell Black™ CALIP series IP cameras, this DVR delivers outstanding video performance for hybrid application of analog and network surveillance.

The user-friendly operation interface with button panel allows users to live view, record, playback, back up and remotely control the system simultaneously. With 4 SATA slot, the maximum storage capacity is up to 24TB.

The CADVR-4008FD/16FD/08FD-H is easy to configure and can be operated through smart phone and internet explorer. The CALNVRView mobile app allows a quick remote access and control to CADVR4008FD/16FD/-08FD-H via your mobile phone. Free DDNS server service is available to support remote control of the DVR. The CADVR-4008FD/16FD/08FD-H also comes with a free CMS software CAL-CMS200 which provides rich functions such as video management, user management, storage, video output, etc.

Market Opportunities

The CADVR-4008FD/16FD/-08FD-H series is an ideal solution for high definition surveillance. With 1080P high resolution recording, compatibility with AHD analog cameras, 750TVL (or less than 750TVL resolution), and Honeywell Black™ CALIP series IP cameras, this easy-to-configure and easy-to-operate DVR series is ideal for small to medium scale surveillance installations such as in retail stores, dispensaries, clinics, offices hotels and so on

FEATURES

  • 1080P high resolution recording
  • Button-panel interface for easy operation
  • Multiplex recording schedule options: manual, alarm, motion detection, timing
  • Multiplex operation: live view, record, play back, backup and remotely control the system simultaneously
  • HDMI and VGA output simultaneously at up to1080P resolution
  • H.264 High profile decoding
  • 4 SATA HDD interface: maximum 24TB storage capacity
  • ONVIF 2.0 compliant
  • Support remote control through DDNS service by free of charge
  • On-line user view: maximum 6 users simultaneously
  • CALNVRView: free Android and Apple app for remote playback, record and snapshot through mobile phone
  • Multiple network monitoring: CAL-CMS200 (for PC), CALNVRView (for mobile app), IE Web browser
  • Power: DC12V
