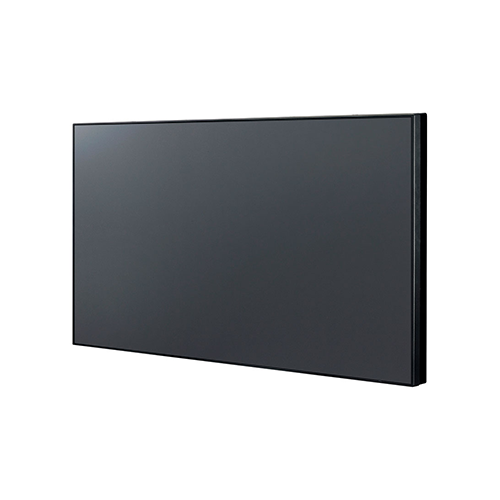

Panasonic TH-55LFV70

QUICK OVERVIEW

Video Wall LED Display

Compare
Categories: ,

Description

Highly reliable frameless backlight display for video wall installations – TH-55LFV70

Ideal solution for rental & staging, signage, broadcast and control room applications

Video, Audio, and Control Signals Can Be Distributed by DIGITAL LINK Single Cable Daisy Chain

The terminal board for the LFV70 Series is equipped with a DIGITAL LINK output terminal. Video, audio and control signals are combined into one DIGITAL LINK signal and can be transmitted by single cable daisy chain connection.
This enables not only a multi-screen system to be configured using only displays and video sources with no need for a video splitter or other device, but also easy installation and control of multi-screen system thanks to simple cabling



Failover and Failback Functions Support Emergency Situations

The LFV70 Series is equipped with digital signal input terminals of two DVI-D, HDMI, DisplayPort, DIGITAL LINK, and USB. If the main video and audio signals are interrupted, the system immediately switches to alternative signals. This makes it ideal for mission critical control rooms and surveillance centers.
If the main display signal is interrupted, the image is simply cut off.
Even if the main display signal is interrupted, the system switches to a back-up signal, so the image is not cut off.



Installation Frame Simplifies Set-up

The optional Installation Mount makes it much easier to configure a video wall. There’s no need for complicated display positioning, and fluctuations between installers are covered. It also saves time and cuts labor costs.

Video wall fluctuations occur when the bezels are not correctly aligned vertically and horizontally and the surfaces are not properly adjusted. Installation is quick and easy using the rigid frame, with easy adjustment using surface alignment magnets. This structure also makes the displays easier to remove when performing maintenance.

USB Easy Synchronized Playing

Simply connect USB memory sticks containing still contents files to a 2×2-unit multi-screen configuration for easy synchronized 4K signages.

High Reliability Enables Continuous 24-Hour Operation and Portrait Installation

The use of a highly durable panel and electronic components allows continuous 24-hour operation, ideal for installation in public places, surveillance stations, etc. A built-in cooling fan automatically operates (when set to Auto) depending on the temperature. This prevents overheating in the upper screens of a multi-screen installation, which are easily subject to heating. The TH-55LFV70 can also be installed either horizontally or vertically, without any difference in panel life, so there is no effect on TCO.

*In case of long time, the moving image is recommended to be displayed. If you display a still picture for an extended period, the image retention might remain on the screen. However, image retention can gradually disappear by displaying a moving images.



Calibration Functions Support Multi-Screen Installation

New calibration software

Color differences can develop between displays as time passes after multi-screen installation. This new calibration software supports sensors that are sold by a variety of suppliers. It lets you adjust colors while using your existing calibration sensor.

Pre-calibration

The color is adjusted on the LFV70 Series when it is shipped from the factory so there is no adjustment necessary during installation, which greatly shortens the time required for multi-screen installation. Color differences between the displays are also suppressed in order to display natural-appearing images.

*In some cases, visual adjustment is necessary during multi-screen installation.



An Ultra-Narrow Bezel for Seamless, Large-Screen Layouts

The ultra-narrow bezel results in joints that are only 3.5 mm (0.14″) wide for video wall installations. Even in large-screen configurations, the screen borders can barely be seen, so images are powerful and natural.
